Lazer Z Diesel

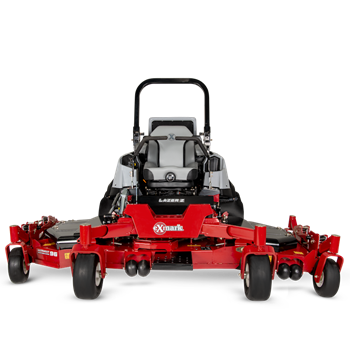

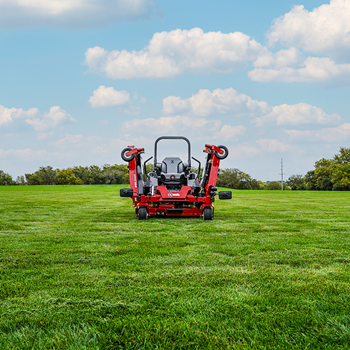

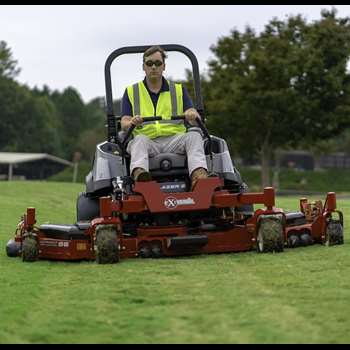

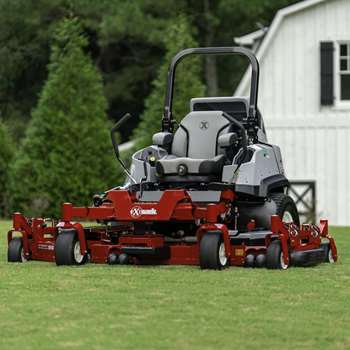

When maximum productivity, durability, and cut quality are your priorities, the new Exmark Lazer Z Diesel zero-turn mowers are the right choice. When equipped with the new industry-leading 144-inch UltraCut™ Flex Wing cutting deck, the Lazer Z Diesel can mow 11.5 acres per hour, making it the most productive mower Exmark has built. Powered by a cutting-edge Yanmar diesel engine, large drive tires allow you to reach ground speeds up to 12.5 MPH with the 96" deck. The Lazer Z Diesel is also available with 60 and 72-inch UltraCut™ cutting decks. Delivering a high-quality cut, the flex wings on the 96-inch and 144-inch decks pivot 20 degrees up and 15 degrees down on sloping terrain.

The Lazer Z Diesel zero-turn mower delivers unparalleled durability and precision maneuverability. So, if you’re looking for our top-of-the-line, most productive mower, the Lazer Z Diesel mower is the best option for you. But be sure to check out the rest of the Lazer Z lineup of zero-turn mowers.

Equipment

• UPC 193308000770
• Onboard Intelligence RED Technology
• Starter Electric
• Steering Control Hydraulically dampened twin levers, adjust fore and aft., also adjustable to 2 height positions. Adjustable dampeners (3 positions) to customize drive responsiveness.
• Caster Forks.50" thick caster yoke arms.
• Front Caster Tires 15 x 6.0-6, smooth-tread, semi-pneumatic.
• Drive Tires 26x12-12, 6ply
• Parking Brake Lever-actuated internal wet disc brake.
• Tractor Frame Welded, heavy-duty 1.5" x 3" x 3/16" tubular steel.
• Blade Spindles No maintenance, sealed and non-greaseable spindles; 7.75"-diameter cutter housing with 25mm (.98") diameter spindle shaft, double row bearings, top and bottom, and splined blade driver.
• Electrical 12-volt battery with 55-amp alternator.
• Standard Features 12-volt plug-in, engine hour meter, and cup holder
• Seat Deluxe, two-tone, bolstered suspension seat with Elastomeric Vibration Control material. Mounted on an innovative Seat Isolation System that provides operator isolation in all three planes of motion as well as fore-aft slide and seat flip-up.

Power Components

• Engine Brand Yanmar
• Transmission Speeds Infinitely Variable
• Engine Brand YANMAR
• Engine Model 3TNV80FT
• Engine Displacement 1267
• Fuel System Electronically Governed IDI Turbo Diesel
• Engine Series TNV
• SpeedInfinitely variable speed selection from 0–11.0 mph (18 kph) forward, 0–6 mph (10 kph) reverse.
• Transmission Hydrostatic
• Engine Spec ZMTR1
• Drive Hydro-Drive
• Engine Speed 2,600 RPM
• Air Filter Heavy-duty canister air filtration system with electronic vacuum sensor
• Fuel Capacity 12-gallon (45.4-L), side fuel tanks
• Drive Description Kanzaki KPS-18T Transmission, 16-quart oil capacity, spin-on filter. 18 cc shoe type pumps and 17.84 cubic inch Hydro-Gear HGM-18 motors, hydraulic oil cooler.
• PTO EngagementIntegrated wet clutch system in transmission, connected to right angle gearbox on deck via drive shaft
• Fuel Type Diesel
• Drive Wheel Release Allows unit movement without the engine running.
• Fuel IndicatorYes - mechanical float type
• Deck Lift Hydraulic
• Carb CompliantY es
• Safety Package Operator Presence Controls (OPC) and drive system interlock, with safety interlock system indicators.
• ROPS2-post foldable ROPS standard with seat belt and latch.

Decks

• Deck Style Floating Deck
• Deck Style Description Full-floating Ultra Cut Series 4. Side discharge standard, with molded discharge chute and the option to bag or mulch.
• Width / Cutting Deck60"
• Deck Construction 10-gauge top that is formed and continuously seam welded, 7-gauge side skirt, and 7-gauge reinforced spindle mounting locations for improved strength and reduced weight.
• Cutting Heights 1.0" (2.5 cm) to 5.5" (11.8 cm) in 0.25" (0.64 cm) increments adjustable from the operator’s seat.
• Blade Tip Speed Approximately 17,600 fpm
• Blades3 Blades at 20.50" Length

Dimensions

• Width 72.8 in. (184.9 cm)
• Height 71.8 in. (182.4 cm)
• Length 96.43 in. (244.9 cm)
• Curb Weight 1915
