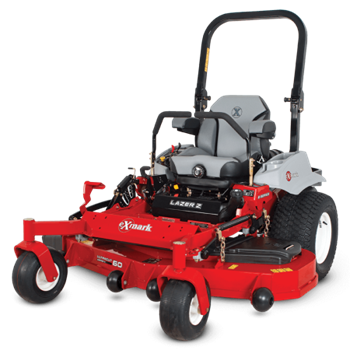

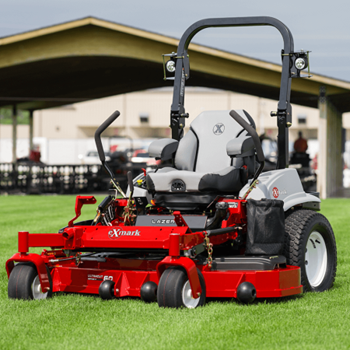

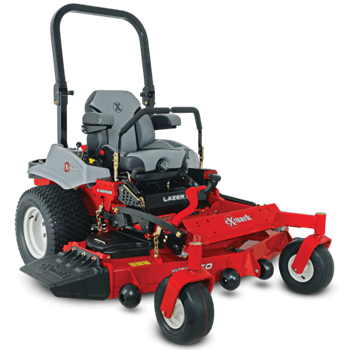

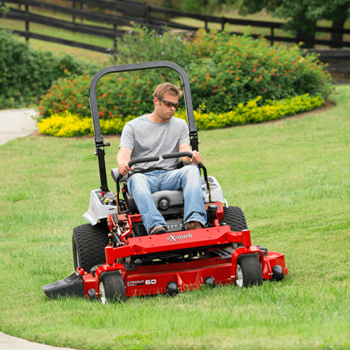

Lazer Z E-Series
The perfect choice for professional landscapers who want the innovative and commercial-grade quality of a Lazer Z zero-turn riding mower, but in a value package. The Lazer Z E-Series zero-turn mower features the same welded, heavy-duty, 1.5”x 3” tubular steel unibody frame found throughout our Lazer Z models. You can also choose from two rugged Kawasaki® V-Twin engines, a Kohler® Command™ Pro, or a Vanguard V-Twin engine matched to a full-floating, UltraCut™ Series 4 cutting deck, in 48, 52, 60, or 72-inch deck widths. Lazer Z E-Series zero-turn mowers come equipped with a full-suspension seat that enhances operator comfort, leading to less fatigue and increased efficiency.
Like our full lineup of zero-turn mowers, the Lazer Z E-Series offers unparalleled durability and precision maneuverability. Be sure to check out the rest of the Lazer Z family of mowers, like the Lazer Z S-Series zero-turn mower.
Equipment
- UPC 193308000442
- Starter Electric
- Steering Control Hydraulically dampened twin levers, adjust fore and aft. Adjustable dampeners (3 positions) to customize drive responsiveness. Also adjustable to 2 height positions.
- Caster Forks.50" thick caster yoke arms.
- Front Caster Tires13 x 5.0-6, smooth-tread, semi-pneumatic.
- Drive Tires 23 x 9.50-12, 4-ply Super Turf®
- Parking Brake Lever-actuated disc brake.
- Tractor Frame Unibody, welded, heavy-duty 1.5" x 3" tubular steel.
- Blade Spindles No maintenance, sealed and non-greaseable spindles; 7.75"-diameter cutter housing with 25mm (.98") diameter spindle shaft and splined blade driver.
- Electrical 12-volt battery with 15-amp alternator.
- Standard Features Engine hour meter and cup holder
- Seat Deluxe, bolstered suspension seat with Elastomeric Vibration Control material. Adjustment: Fore and aft from Operators’ Position.
Power Components
- Engine Brand Kawasaki®
- Engine Brand Kawasaki
- Transmission Speeds Infinitely Variable
- Engine Model FX651V
- Engine Displacement 726
- Engine SeriesV-Twin
- Speed Infinitely variable speed selection from 0–8.0 mph (12.9 kph) forward, 0–5.0 mph (8.1 kph) reverse.
- Transmission Hydrostatic
- Drive Hydro-Drive
- Engine Spec FX651V-FS07-R
- Engine Speed 3,750 RPM
- Air Filter Heavy-duty canister air filtration system
- Fuel Capacity 12-gallon (45.4-L), single fuel tank with single fill location.
- Drive Description Two Exmark exclusive Parker unitized pump and wheel motor systems with no hoses, 1.7-quart integrated reservoir, spin-on filter, and heavy-duty components. 12 cc pumps and 14. 5 cubic inch motors.
- Fuel Type Gas Carbureted
- PTO Engagement MagStop Electromagnetic 175 ft-lb clutch with spot brake
- Drive Wheel Release Allows unit movement without the engine running.
- Fuel Indicator Yes - electronic Sender
- Deck Lift Standard; foot-controlled deck lift changes cutting height and lifts the deck to maneuver around obstacles or place in transport position.
- Carb Compliant No
- Safety Package Operator Presence Controls (OPC) and drive system interlock, with safety interlock system indicators.
- ROPS2-post foldable ROPS standard with seat belt and latch.
Decks
- Deck Style Floating Deck
- Deck Style Description Full-floating Ultra Cut Series 4. Side discharge standard, with molded discharge chute and option to bag or mulch.
- Width / Cutting Deck48"
- Deck Construction 10-gauge top that is formed and continuously seam welded, 7-gauge side skirt, and 7-gauge reinforced spindle mounting locations for improved strength and reduced weight.
- Cutting Heights 1.0" (2.5 cm) to 5.5" (11.8 cm) in 0.25" (0.64 cm) increments adjustable from the operator’s seat.
- Blade Tip Speed Approximately 18,500 fpm.
- Blades3 Blades at 16.25" Length
Dimensions
- Width 59.6 in. (151.4 cm)
- Height 70.5 in. (179.1 cm)
- Length 79.2 in. (201.2 cm)
- Curb Weight 1118
