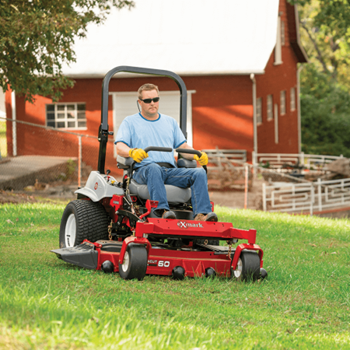

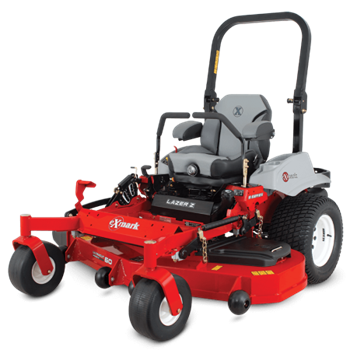

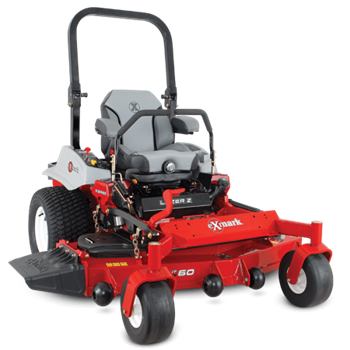

Lazer Z S-Series

With the top-rated Lazer Z S-Series of zero-turn rider mowers, you can choose from Kawasaki and Kohler engines, including an eco-friendly, Electronic Fuel Injection (EFI) option. UltraCut™ Series 4 cutting deck sizes available include 52, 60, or 72 inches. And for increased durability, the deck is made of a 10-gauge steel, formed, and continuously seam-welded top and a 7-gauge side skirt. All with welded spindle mounting sites and full-floating 4-point suspension with four adjustable anti-scalp rollers.

Select Lazer Z S-Series models that offer Smart Controller. This easy-to-use interface has a wealth of user data like fuel level, interlock status, PTO and total hours, maintenance reminders, and machine health status. Like our full lineup of zero-turn mowers, the Lazer Z S-Series offers unparalleled durability and precision maneuverability. Be sure to check out the rest of the Lazer Z family of mowers, like the Lazer Z X-Series zero-turn mowers.

Equipment

• UPC 193308225470
• Onboard Intelligence Smart Controller
• Steering Control Hydraulically dampened twin levers, adjust fore and aft. Adjustable dampeners (3 positions) to customize drive responsiveness. Also adjustable to 2 height positions.
• Caster Forks.50" thick caster yoke arms.
• Front Caster Tires 13 x 5.0-6, smooth-tread, semi-pneumatic.
• Drive Tires 23 x 9.50-12, 4-ply Super Turf®
• Parking Brake Lever-actuated disc brake.
• Tractor Frame Unibody, welded, heavy-duty 1.5" x 3" tubular steel.
• Blade Spindles No maintenance, sealed and non-greaseable spindles; 7.75"-diameter cutter housing with 25mm (.98") diameter spindle shaft and splined blade driver.
• Electrical 12-volt battery with 20-amp alternator.
• Standard Features Engine hour meter and cup holder
• Seat Deluxe, two-tone, bolstered suspension seat with Elastomeric Vibration Control material. Mounted on an innovative Seat Isolation System that provides operator isolation in all three planes of motion as well as fore-aft slide and seat flip-up.

Power Components

• Engine Brand Kohler
• Engine Model ECV749
• Engine Displacement 747
• SpeedInfinitely variable speed selection from 0–10.0 mph (16 kph) forward, 0–6.0 mph (9.7 kph) reverse.
• Engine Series Command™ EFI
• Engine Spec 3064
• Drive Hydro-Drive
• Engine Speed 3,750 RPM
• Air Filter Heavy-duty canister air filtration system
• Fuel Capacity 12-gallon (45.4-L), single fuel tank with single fill location.
• Drive DescriptionTwo Exmark exclusive Parker unitized pump and wheel motor systems with no hoses, integrated cooling fans, 1.7-quart integrated reservoir, spin-on filter, and heavy-duty components. 12 cc pumps and 14. 5 cubic inch motors.
• Fuel Type Gas EFI
• PTO Engagement MagStop electromagnetic 200-ft-lb clutch with spot brake
• Drive Wheel ReleaseAllows unit movement without the engine running.
• Fuel Indicator Yes - electronic Sender
• Deck Lift Standard; foot-controlled deck lift changes cutting height and lifts the deck to maneuver around obstacles or place in transport position.
• Carb Compliant No
• Safety Package Operator Presence Controls (OPC) and drive system interlock, with safety interlock system indicators.
• ROPS2-post foldable ROPS standard with seat belt and latch.

Decks

• Deck Style Floating Deck
• Deck Style Description Full-floating UltraCut Series 4. Side discharge standard, with molded discharge chute and the option to bag or mulch.
• Width / Cutting Deck52"
• Deck Construction 10-gauge top that is formed and continuously seam welded, 7-gauge side skirt, and 7-gauge formed and welded spindle mounting locations for improved strength and reduced weight.
• Cutting Heights 1.0" (2.5 cm) to 5.5" (11.8 cm) in 0.25" (0.64 cm) increments adjustable from the operator’s seat.
• Blade Tip Speed Approximately 18,500 fpm.
• Blades3 Blades at 20.50" Length

Dimensions

• Width 64.8 in. (164.6 cm)
• Height 70.5 in. (179.1 cm)
• Length 79.2 in. (201.2 cm)
• Curb Weight 1136
