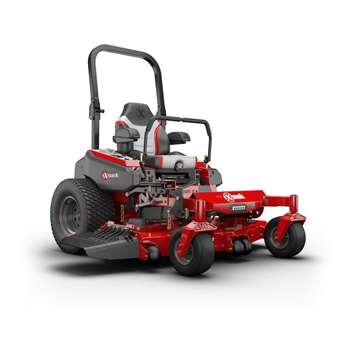

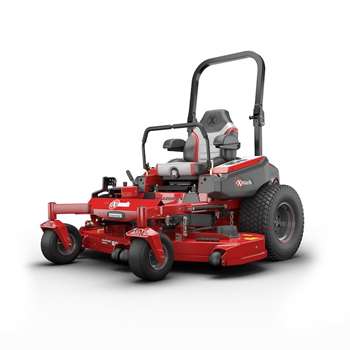

Lazer Z V-Series

What do you get when you combine our industry-leading Lazer Z zero-turn mower with the state-of-the-art HyperCell power system? You get the new Lazer Z V-Series electric zero-turn mower. The Lazer Z V-Series gives landscape professionals a competitive edge when competing for contracts that include sound ordinances or zero engine exhaust mandates.

The Lazer Z V-Series provides the cut quality, productivity, and commercial durability you expect from Exmark, all in a quiet, fast, low-maintenance electric zero-turn mower. The HyperCell power system delivers up to 7+ hours of runtime on each charge, so you can mow all day without charging. Our patent-pending management software delivers precise maneuverability with consistent, predictable control. Lazer Z V-Series also features Horizon360 Connect remote software, so you have full app-based connectivity to settings, location, and data from your Lazer Z V-Series mower.

When you're looking for the premier commercial electric zero-turn mower available today, look no further than the Lazer Z V-Series. Available with an Adapt-equipped 60-inch Electric Series 4 cutting deck, the Lazer Z V-Series is the powerful, productive electric zero-turn mower you need to lead the pack.

Equipment

• UPC 193308225487
• Onboard Intelligence Proprietary control system
• Steering Control Hydraulically dampened twin levers, adjust fore and aft. Adjustable to 2 height positions.
• Caster Forks Cast steel fork
• Front Caster Tires 13 x 6.5-6, smooth-tread, semi-pneumatic.
• Drive Tires 24x12-12, 4 ply Grass Master®
• Parking Brake Spring applied/electrically released dry parking brake.
• Tractor Frame Unibody, welded, heavy-duty 2" x 3" tubular steel.
• Blade Spindles No maintenance, electric deck motor; 7.75"-diameter motor housing with 25mm (.98) diameter spindle shaft.
• Electrical 60-volt 23.4kWh HyperCell battery system.
• Standard Features USB plug-in, hour meter, and cup holder
• Seat Deluxe, two-tone, bolstered suspension seat with Elastomeric Vibration Control material. Mounted on an innovative Seat Isolation System that provides operator isolation in all three planes of motion as well as fore-aft slide and seat flip-up.

Power Components

• Engine BrandN/A
• Engine Mode lN/A
• Engine Displacement N/A
• Fuel System N/A
• SpeedInfinitely variable speed selection from 0–11.0 mph (18 kph) forward, 0–6 mph (10 kph) reverse.
• Engine Series N/A
• Engine Spec N/A
• drive electric drive
• Engine Speed N/A
• Air Filter N/A
• Fuel Capacity N/A
• Drive Description Two Exmark exclusive Dana planetary gearset electric motors.
• Fuel Type Battery
• PTO Engagement N/A
• Drive Wheel ReleaseAllows unit movement without electric power.
• Fuel Indicator Battery charger level indicator
• Deck Lift Standard; foot-controlled deck lift changes cutting height and lifts the deck to maneuver around obstacles or place in transport position.
• Carb CompliantN/A
• Safety Package Operator Presence Controls (OPC) and drive system interlock, with safety interlock system indicators.
• ROPS2-post foldable ROPS standard with seat belt and latch.

Decks

• Deck Style Floating Deck
• Deck Style DescriptionFull-floating Electric Series 4. Side discharge standard, with molded discharge chute and the option to bag or mulch.
• Width / Cutting Deck60"
• Deck Construction7-gauge high-strength alloy top that is formed and seam welded, with 7-gauge high-strength alloy side skirt.
• Cutting Heights 1.0" (2.5 cm) to 5.0" (12.7 cm) in 0.25" (0.64 cm) increments adjustable from the operator’s seat.
• Blade Tip Speed Approximately 17,500 fpm.
• Blades3 Blades at 20.50" Length

Dimensions

• Width 75.4 in. (191.5 cm)
• Height 71.8 in. (182.4 cm)
• Length 82.3 in. (209.0 cm)
• Curb Weight 1414
