Lazer Z X-Series

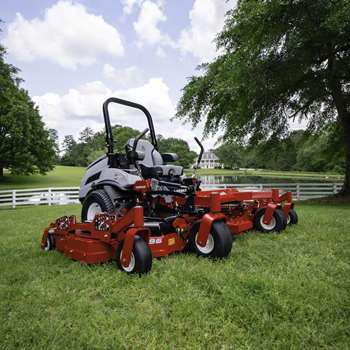

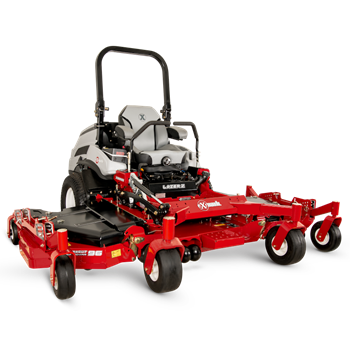

With options to meet the needs of the most demanding landscape maintenance professionals, our top-rated Exmark Lazer Z X-Series zero-turn mowers represent state-of-the-art commercial mowers. Cutting deck options include our massive 96-inch UltraCut Flex Wing cutting deck and select models equipped with our exclusive cut quality enhancing Adapt Technology. Choose from rugged commercial-grade engines, including high-efficiency Electronic Fuel Injection (EFI) options equipped with our exclusive EGov and RED Technology, which can boost fuel efficiency by up to 41%. Lazer Z X-Series zero-turn mower models are available with UltraCut Series 6 decks in 52-, 60-, and 72-inch cutting widths, with or without Adapt Technology, or the 96-inch UltraCut Flex-Wing rear discharge cutting deck.
Regardless of the combination you choose for your Exmark Lazer Z zero-turn mower, you’ll ride in unmatched comfort thanks to our full-suspension seating system and smooth, easy-to-use controls that offer precision maneuverability. And from a long-term value standpoint, nothing beats the Exmark Lazer Z X-Series mower. It's the perfect combination of power, productivity, and durability. That's why it's our top-of-the-line gasoline-powered mower and should be at the top of your list.
Equipment
- UPC 193308225463
- Steering Control Hydraulically dampened twin levers, adjust fore and aft. Adjustable dampeners (3 positions) to customize drive responsiveness. Also adjustable to 2 height positions.
- Caster Forks.50" thick caster yoke arms.
- Front Caster Tires 13 x 5.0-6, smooth-tread, semi-pneumatic.
- Drive Tires 23 x 9.50-12, 4-ply Super Turf®
- Parking Brake Lever-actuated disc brake.
- Tractor Frame Unibody, welded, heavy-duty 1.5" x 3" tubular steel.
- Blade Spindles No maintenance, sealed and non-greaseable spindles; 7.75"-diameter cutter housing with 30mm (1.18") diameter spindle shaft, double row bearings, top and bottom, and splined blade driver.
- Electrical 12-volt battery with 15-amp alternator.
- Standard FeaturesEngine hour meter and cup holder
- Seat Deluxe, two-tone, bolstered suspension seat with Elastomeric Vibration Control material. Mounted on an innovative Seat Isolation System that provides operator isolation in all three planes of motion as well as fore-aft slide and seat flip-up.
Power Components
- Engine Brand Kawasaki
- Engine Model FX801V
- Engine Displacement852
- SpeedInfinitely variable speed selection from 0–10.0 mph (16.1 kph) forward, 0–7.0 mph (11.3 kph) reverse
- Engine SeriesV-Twin
- Drive Hydro-Drive
- Engine Speed 3,750 RPM
- Engine Spec FX801V-MS04-R
- Air Filter Heavy-duty canister air filtration system
- Fuel Capacity 12-gallon (45.4-L), single fuel tank with single fill location.
- Drive DescriptionTwo Exmark exclusive Parker unitized pump and wheel motor systems with no hoses, integrated cooling fans, shock valve, 1.7-quart integrated reservoir, spin-on filter, and heavy-duty components. 12 cc pumps and 17.1 cubic inch motors.
- PTO Engagement MagStop electromagnetic 200-ft-lb clutch with spot brake
- Fuel Type Gas Carbureted
- Drive Wheel ReleaseAllows unit movement without the engine running.
- Fuel Indicator Yes - electronic Sender
- Deck Lift Standard; foot-controlled deck lift changes cutting height and lifts the deck to maneuver around obstacles or place in transport position. Equipped with Adapt system.
- Carb Compliant No
- Safety Package Operator Presence Controls (OPC) and drive system interlock, with safety interlock system indicators.
- ROPS2-post foldable ROPS standard with seat belt and latch.
Decks
- Deck Style Floating Deck
- Deck Style Description Full-floating UltraCut Series 6 with the heavy-duty spindle. Side discharge standard with the option to bag or mulch.
- Width / Cutting Deck52"
- Deck Construction 10-gauge top that is formed and continuously seam welded, 7-gauge side skirt, and 7-gauge formed and welded spindle mounting locations for improved strength and reduced weight.
- Cutting Heights 1.0" (2.5 cm) to 5.5" (11.8 cm) in 0.25" (0.64 cm) increments adjustable from the operator’s seat.
- Blade Tip Speed Approximately 18,500 fpm.
- Blades3 Blades at 20.50" Length
Dimensions
- Width 64.8 in. (164.6 cm)
- Height 70.5 in. (179.1 cm)
- Length 86.1 in. (218.7 cm)
- Curb Weight 1200
