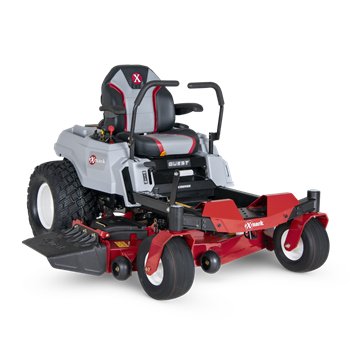

Quest X-Series

Looking for a residential zero-turn mower with commercial features and performance? You’ve found it in the new Quest X-Series. The powerful Kohler engine, upgraded 48-inch UltraCut Series 3 cutting deck, and heavy-duty Hydro-Gear transmission enable the Quest X-Series to cut at up to 8 mph. When combined with the incredible maneuverability of the low center of gravity frame design and the smooth rolling of the large drive and caster tires, the Quest X-Series offers an unbeatable combination of performance and value.

A new armrest-equipped operator seat provides a smooth ride over bumpy lawns, while a deeper floor pan offers increased legroom for the operator. A standard deck step is included to ease mounting and dismounting the machine, while an integrated hitch and tools-free belt shields ease access for service and maintenance. However, with just two annual grease points and low-maintenance integrated hydro transmissions, servicing the Quest X-Series isn’t something you’ll need to do often. That’s more time for you to do the things you love.

If you’re looking for even more power and performance, check out our Radius line of zero-turn riding mowers.

Equipment

• UPC 193308225319
• Steering Control Hydraulically dampened twin levers adjustable both fore and aft. Also has a 2-position height adjustment.
• Front Caster Tires 13 x 6.5-5 smooth-tread, pneumatic.
• Drive Tires 22 x 11-10 K3012
• Blade Spindles No maintenance, sealed and non-greaseable spindles; 7.30"-diameter cutter housing contains 17mm (.67") diameter spindle shaft and hex blade drive.
• Blade Spindles No maintenance, sealed and non-greaseable spindles; 7.30"-diameter cutter housing contains 17mm (.67") diameter spindle shaft and hex blade drive.
• Seat Commercial grade, high back contoured foam padded with armrests. Hinged mounting and spring suspension. Adjustment is fore and aft for operator position.

Power Components

• Engine Displacement 735
• Engine Series 7000 Series
• Fuel System Carbureted
• Speed Infinitely variable speed selection from 0–8.0 mph (12.9 kph) forward, 0–5.0 mph (8.0 kph) reverse.
• Engine Series 7000 Series
• Speed Infinitely variable speed selection from 0–8.0 mph (12.9 kph) forward, 0–5.0 mph (8.0 kph) reverse.
• Engine Spec 3099
• Drive Hydro-Drive
• Engine Speed 3,600 rpm
• PTO Engagement Electromagnetic 105-ft-lb clutch
• Fuel Type Gas Carbureted
• Fuel Type Gas Carbureted
• Drive Wheel Release Allows unit movement without the engine running.
• Fuel Indicator Translucent Visual
• Fuel Indicator Translucent Visual
• Carb Compliant No
• Safety Package Operator Presence Controls (OPC) and drive system interlock.
• ROPS Optional Rigid ROPS with seat belt and latch.
• ROPS Optional Rigid ROPS with seat belt and latch.

Decks

• Deck Style Floating Deck
• Deck Style Description Full-floating UltraCut Series 3. Side discharge standard, with molded discharge chute and option to bag or mulch.
• Deck Style Description Full-floating UltraCut Series 3. Side discharge standard, with molded discharge chute and option to bag or mulch.
• Width / Cutting Deck48"
• Deck Construction 10-gauge high-strength alloy top that is formed and continuously seam welded, with a 7-gauge side skirt.
• Deck Construction 10-gauge high-strength alloy top that is formed and continuously seam welded, with a 7-gauge side skirt.
• Cutting Heights 1.5" (3.8 cm) to 4.5" (11.4 cm) in 0.50" (1.3 cm) increments, adjustable from the operator's seat.
• Blade Tip Speed Approximately 18,500 fpm.
• Blades3 Blades at 16.25" Length
• Blades3 Blades at 16.25" Length

Dimensions

• Width 59.5 in. (151.0 cm)
• Width 59.5 in. (151.0 cm)
• Height 47.6 in. (121.0 cm)
• Height 47.6 in. (121.0 cm)
• Length 76.0 in. (193.0 cm)
• Curb Weight 680
