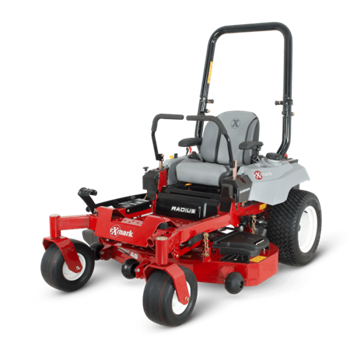

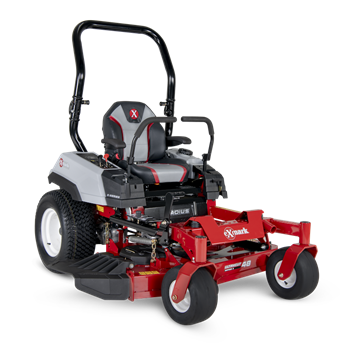

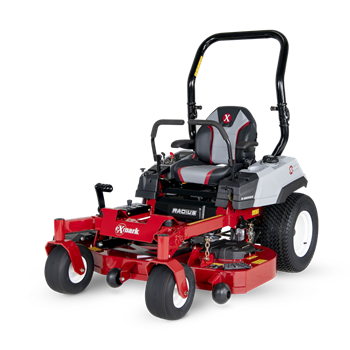

Radius E-Series
Designed to deliver professional-grade features at an affordable price, the new Exmark Radius E-Series zero-turn mower is a great option for landscape maintenance pros and users seeking professional performance. Available with a choice of 48-, 52- or 60-inch UltraCut Series 3 cutting decks, the Radius E-Series delivers the cut quality you expect, with reduced maintenance and durability you can count on.
Powered by the Exmark twin-cylinder commercial engine, Radius E-Series models deliver superior operator comfort with an isolated footrest, seat suspension options, and a new side pod design (2023 models) that places vital controls right at the operator’s fingertips.
If you're looking for a larger, more powerful commercial zero-turn mower, check out the Radius S-Series and Radius X-Series.
Equipment
- UPC 193308225326
- Starter Electric
- Steering Control Hydraulically dampened twin levers adjustable both fore and aft. Also has a 2-position height adjustment.
- Caster Forks.375" thick caster yoke arms
- Front Caster Tires 13 x 6.5-6, smooth tread, pneumatic. Bushings
- Drive Tires 22 x 9.5-12 Super Turf TL
- Parking Brake Lever-actuated pawl brake.
- Tractor Frame Unibody, welded, heavy-duty 2" X 3" rectangular tubular steel.
- Blade Spindles No maintenance, sealed and non-greaseable spindles; 7.30"-diameter cutter housing contains 17mm (.67") diameter spindle shaft and hex blade drive.
- Electrical 12-volt battery with 15-amp alternator.
- Standard Features Engine hour meter, cup holder, tow hitch, and jack receiver
- SeatHigh back seat with foam padded seat cushion, armrests, and integral safety switch
Power Components
- Transmission Speeds Infinitely Variable
- Engine Brand Exmark
- Engine Model LC2P77F
- Engine Displacement 708
- Transmission Hydrostatic
- Engine SeriesV-Twin
- SpeedInfinitely variable speed selection from 0–8.0 mph (12.9 kph) forward, 0–5.0 mph (8.0 kph) reverse.
- Fuel System Carbureted
- Drive Hydro-Drive
- Engine Speed 3,600 rpm
- Engine SpecK5045
- Air Filter Standard Engine Manufacturer's air filter
- Fuel Capacity 7-gallon (26.5-L) single fuel tank with single fill location.
- Drive Description Dual Hydro Gear ZT2800, hydrostatic transmission with charge pumps, relief valves, and independent, replaceable filters.
- PTO Engagement MagStop electromagnetic 125-ft-lb clutch
- Fuel Type Gas Carbureted
- Drive Wheel ReleaseAllows unit movement without the engine running.
- Fuel IndicatorTranslucent Visual
- Deck Lift Standard; foot-controlled deck lift changes cutting height and lifts the deck to maneuver around obstacles or place in transport position.
- Carb Compliant No
- Safety Package Operator Presence Controls (OPC) and drive system interlock, with safety interlock system indicators.
- ROPS2-post foldable ROPS standard with seat belt and latch.
Decks
- Deck Style Floating Deck
- Deck Style DescriptionFull-floating UltraCut Series 3. Side discharge standard, with molded discharge chute and option to bag or mulch.
- Width / Cutting Deck48"
- Deck Construction10-gauge high-strength alloy top that is formed and continuously seam welded, with a 7-gauge side skirt.
- Cutting Heights 1.5" (3.8 cm) to 5.0" (12.7 cm) in 0.25" (.6 cm) increments, adjustable from the operator's seat.
- Blade Tip SpeedApproximately 18,500 fpm.
- Blades2 Blades at 24.5" Length
Dimensions
- Width 61 in (155 cm)
- Height 69.7 in (177.0 cm)
- Length 82.9 in (210.6 cm)
- Curb Weight 849
