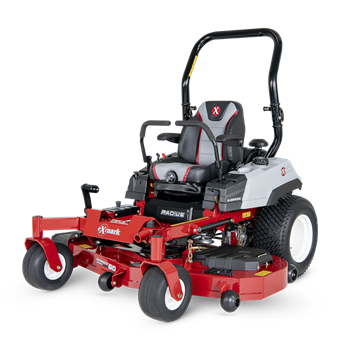

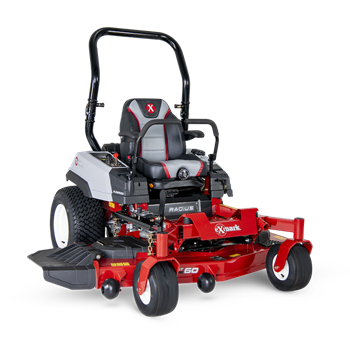

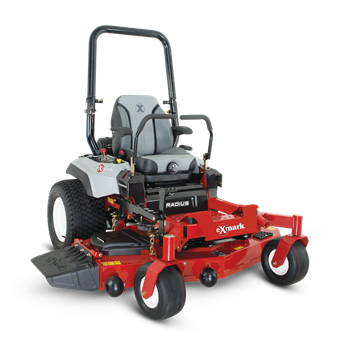

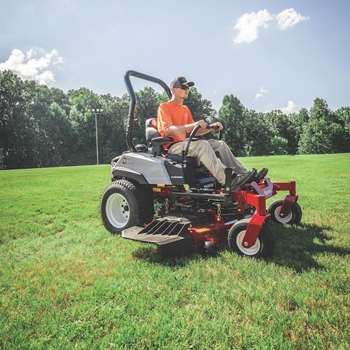

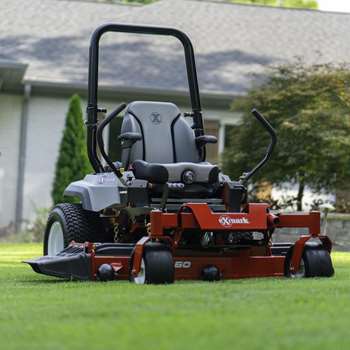

Radius S-Series

Whether you’re upgrading from an older machine or are looking to add another zero-turn to your trailer, the new Radius S-Series delivers an unbeatable combination of durability, operator comfort, performance, and value. Choose from 48-, 52-, or 60-inch UltraCut Series 3 side-discharge cutting decks, each equipped with our exclusive flow-control baffles for superior cut quality. An adjustable full-suspension operator seat and isolated footrest provide superior all-day mowing comfort.

Radius S-Series models are also designed for maximum durability with reduced maintenance. With just two grease points to lubricate annually, low-maintenance Hydro-Gear integrated transmissions, and reliable Kawasaki commercial engines, Radius S-Series models are built for the long haul.

Looking for even more performance, power, and durability? Check out the new Radius X-Series zero-turn mower.

Equipment

• UPC 193308225166
• Starter Electric
• Steering Control Hydraulically dampened twin levers adjustable both fore and aft. Also has a 2-position height adjustment.
• Front Caster Tires 13 x 6.5-6, smooth tread, pneumatic. Caged Roller Bearings (126-3289)
• Drive Tires 23 x 9.5-12 Super Turf TL
• Parking BrakeLever-actuated pawl brake.
• Tractor FrameUnibody, welded, heavy-duty 2" X 3" rectangular tubular steel.
• Blade SpindlesNo maintenance, sealed and non-greaseable spindles; 7.75"-diameter cutter housing with 25mm (.98") diameter spindle shaft and splined blade driver.
• Electrical 12-volt battery with 15-amp alternator.
• Standard FeaturesEngine hour meter, cup holder, tow hitch, and jack receiver
• SeatDeluxe suspension (adjustable spring suspension) seat with high back, molded foam flip-up armrests, and integral safety switch

Power Components

• Transmission SpeedsInfinitely Variable
• Engine Brand Kawasaki
• Engine Brand Kawasaki
• Engine Model FX651V
• Engine Displacement 726
• Engine SeriesV-Twin
• Fuel System Carbureted
• Transmission Hydrostatic
• SpeedInfinitely variable speed selection from 0–9.0 mph (14.5 kph) forward, 0–5.0 mph (8.0 kph) reverse.
• Engine Spec FX651V_S13
• DriveHydro-Drive
• Engine Speed 3,800 rpm
• Air Filter Cyclonic Air Cleaner
• Fuel Capacity 7-gallon (26.5-L) single fuel tank with single fill location.
• Drive Description Dual Hydro Gear ZT3100, hydrostatic transmission with charge pumps, relief valves, and independent, replaceable filters.
• PTO Engagement MagStop electromagnetic 125-ft-lb clutch
• Fuel Type Gas Carbureted
• Drive Wheel Release Allows unit movement without the engine running.
• Fuel IndicatorTranslucent Visual
• Deck Lift Standard; foot-controlled deck lift changes cutting height and lifts the deck to maneuver around obstacles or place in transport position.
• Carb Compliant No
• Safety Package Operator Presence Controls (OPC) and drive system interlock, with safety interlock system indicators.
• ROPS2-post foldable ROPS standard with seat belt and latch.

Decks

• Deck Style Floating Deck
• Deck Style Description Full-floating Ultra Cut Series 3. Side discharge standard, with molded discharge chute and option to bag or mulch.
• Width / Cutting Deck48"
• Deck Construction 10-gauge high-strength alloy top that is formed and continuously seam welded, with a 7-gauge side skirt.
• Cutting Heights 1.5" (3.8 cm) to 5.0" (12.7 cm) in 0.25" (.6 cm) increments, adjustable from the operator's seat.
• Blade Tip Speed Approximately 18,500 fpm.
• Blades2 Blades at 24.5" Length

Dimensions

• Width 61 in (155 cm)
• Height 69.7 in (177.0 cm)
• Length 82.9 in (210.6 cm)
• Curb Weight 900
