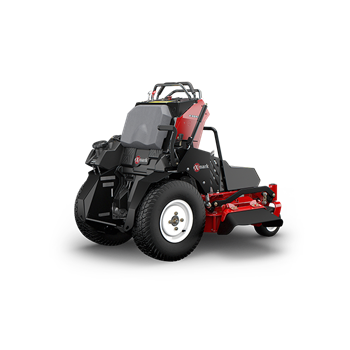

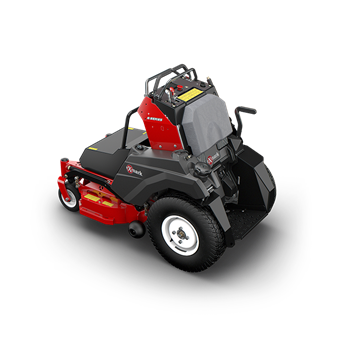

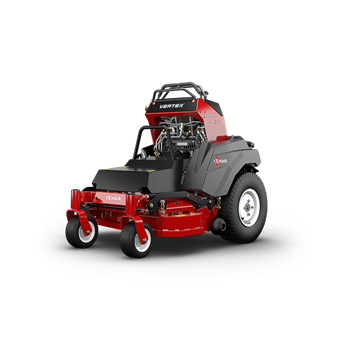

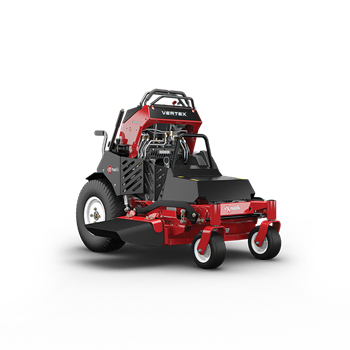

Vertex E-Series

When you need a more productive mower for small to mid-size properties, Vertex E-Series is the right choice. With the operator placed comfortably on a suspended platform between the drive wheels, the Vertex E-Series is designed to easily clear gates that would stop larger machines in their tracks. And with speeds up to 7.5mph forward, you’ll finish jobs faster, with less fatigue, than you would with a walk-behind mower. Your customers will love Exmark’s signature cut quality, and you'll love how fast you got the job done.

Mower Deck Widths: 32" and 36"

Equipment

• UPC 193308241395
• Steering Control Twin levers with adjustable front reference bar to modify forward ground speed.
• Front Caster Tires 9 x 4.50-5, smooth-tread, semi-pneumatic tires with sealed ball bearings.
• Drive Tires 21x7.00-10 Kenda K506
• Parking Brake Lever-actuated bar brake.
• Tractor Frame Welded, heavy-duty 1.5" x 3" tubular steel.
• Blade Spindles No maintenance, sealed and nonbreakable spindles; 7.75" diameter cutter housing with 1.75" diameter splined blade driver 1.0"-diameter spindle shaft.
• Electrical 12-volt battery with 15-amp alternator.
• Cup HolderNo
• Standard FeaturesEngine Hour Meter

Power Components

• Engine Brand Kawasaki
• Engine Model FS600V
• Engine Displacement 603
• Engine SeriesV-Twin
• Fuel System Carbureted
• Speed Infinitely variable speed selection 0–7.5 mph (12.1 kph) forward, 0–4.0 mph (6.4 kph) reverse
• Engine Speed3,600 rpm
• Engine Spec_S36
• Air Filter Standard Engine Manufacturer's air filter
• Fuel Capacity 5-gallon (18.9-L), single fuel tank with single fill location.
• Drive DescriptionTwo Hydro Gear 10 cc pumps powering two Parker 12 cubic inch motors.
• Fuel Type Gas Carbureted
• PTO Engagement Warner 105 ft-lb clutch
• Drive SystemHydro-Drive
• Drive Wheel Release Allows unit movement without the engine running.
• Fuel Indicator Yes - Float Gauge
• Deck Lift Single point HOC
• Carb Compliant Yes
• Safety Package Operator Presence Controls (OPC) with safety interlock system indicators

Deck

• Deck StyleFloating Deck
• Deck Style DescriptionFull-floating UltraCut Series 3. Side discharge standard, with flexible discharge chute and the option to bag or mulch.
• Width / Cutting Deck32"
• Deck Construction7-gauge top that is formed and continuously seam welded, 7-gauge side skirt
• Cutting Heights1.0" (2.54 cm) to 4.5" (11.4 cm) in 0.25" (0.64 cm) increments
• Blade Tip SpeedApproximately 18,500 fpm.
• Blades2 Blades at 16.25" Length

Dimensions

• Width 44.9
• Height 47.3
• Length 58.103
• Curb Weight 702
