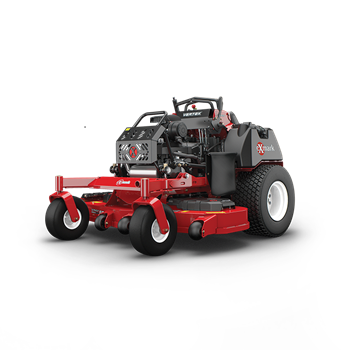

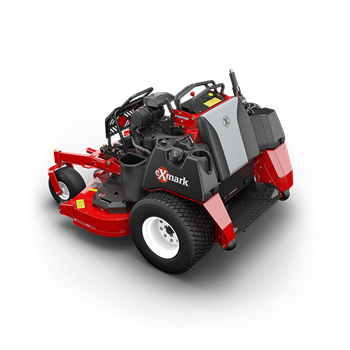

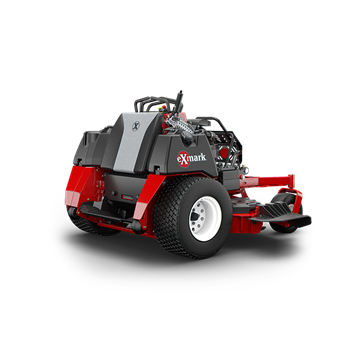

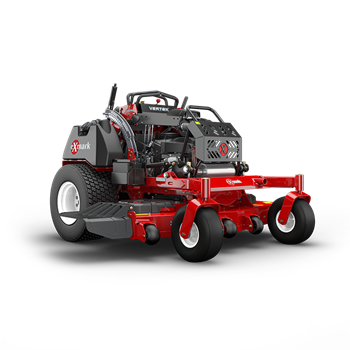

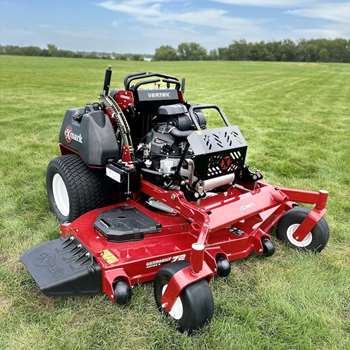

Vertex X-Series

Designed to raise the bar for stand-on mower performance and productivity, Vertex X-Series uses the same formed and welded tubular steel frame and heavy-duty 15-inch casters as our premier Lazer Z zero-turn riding mowers. With carbureted Kawasaki FX1000 engines, you'll have the power to finish jobs faster, with a better quality of cut thanks to our unmatched UltraCut cutting decks. One look and it's easy to see why the Vertex X-Series is the next generation of stand-on mowers. *Coming in 2024*

Equipment

• UPC 193308240671
• Starter Electric
• Steering ControlTwin levers with a center fixed reference bar for ease of control forward and reverse
• Front Caster Tires15 x 6.0-6, smooth-tread, semi-pneumatic tires with tapered roller bearings.
• Drive Tires 24x9.0-12 Hoosier Grass Master
• Parking Brake Lever-actuated internal motor brake
• Tractor Frame Welded, heavy-duty 1.5" x 3.0" tubular steel.
• Blade Spindles No maintenance, sealed and nonbreakable spindles; 7.75" diameter cutter housing with 1.75" diameter splined blade driver 1.0"-diameter spindle shaft.
• Electrical 12-volt battery with 30-amp alternator.
• Cup HolderYes
• Standard Features Enhanced Engine Hour Meter

Power Components

• Transmission Speeds Infinitely Variable
• Engine Brand Kawasaki
• Transmission Brand Hydro-Gear
• Engine Model FX1000V
• Engine Displacement 999
• Engine SeriesV-Twin
• Fuel System Electronic Fuel-injected
• Speed infinitely variable speed selection 0–12.0 mph (19.3 kph) forward, 0–5.0 mph (8.0 kph) reverse
• Transmission Hydrostatic
• Engine Speed 3,600 rpm
• Air Filter Heavy-duty canister air filtration system
• Fuel Capacity 14-gallon (53.0-L), Dual fuel tanks on RH and LH side.
• Drive Description Two Hydro-Gear 16 cc pumps powering two Hydro gear 17.8 cubic inch motors.
• Fuel Type Gas EFI
• PTO Engagement Warner 250 ft-lb clutch
• Drive System HYDRO
• Drive Wheel Release Allows unit movement without the engine running.
• Fuel Indicator Yes - Float Gauge
• Deck Lift Single point HOC; with mechanical lift-assist springs.
• Carb Compliant NO
• Safety Package Operator Presence Controls (OPC) with safety interlock system indicators

Decks

• Deck Style Floating Deck
• Deck Style Description Full-floating Ultra Cut Series 6. Side discharge standard, with molded discharge chute and option to bag or mulch.
• Width / Cutting Deck52"
• Deck Construction 10-gauge top that is formed and continuously seam welded, 7-gauge side skirt
• Cutting Heights 1.5" (3.8 cm) to 5.0" (12.7 cm) in 0.25" (0.64 cm) increments adjustable from the operator’s platform.
• Blade Tip Speed Approximately 18,500 fpm.
• Blades3 Blades at 18.00" Length

Dimensions

• Width 64.79
• Height 48.75
• Length 70.45
• Curb Weight 1250
